Product introduction

01. Low price and low operation cost

02. Fast reaction speed: the space speed can reach 500~3000h-1

03. High mercury removal accuracy: stable mercury concentration at the outlet ≤ 0.001mg/m3

04. The working mercury capacity is high, which can be up to more than 3%, reducing the replacement cycle of mercury removal agent

05. Good mechanical strength, no pulverization in case of water

06. Good regeneration performance and can be reused for many times



Performance parameters of mercury remover

project	indicators

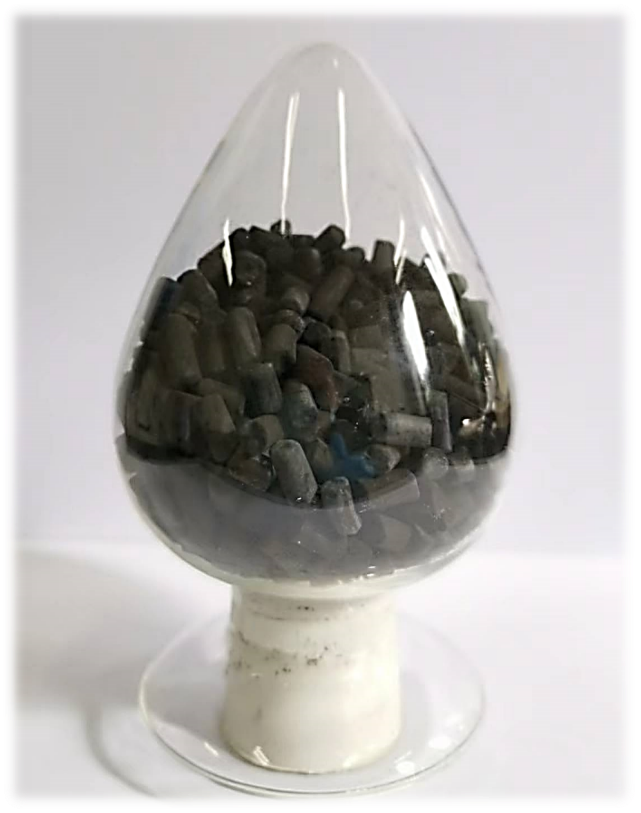

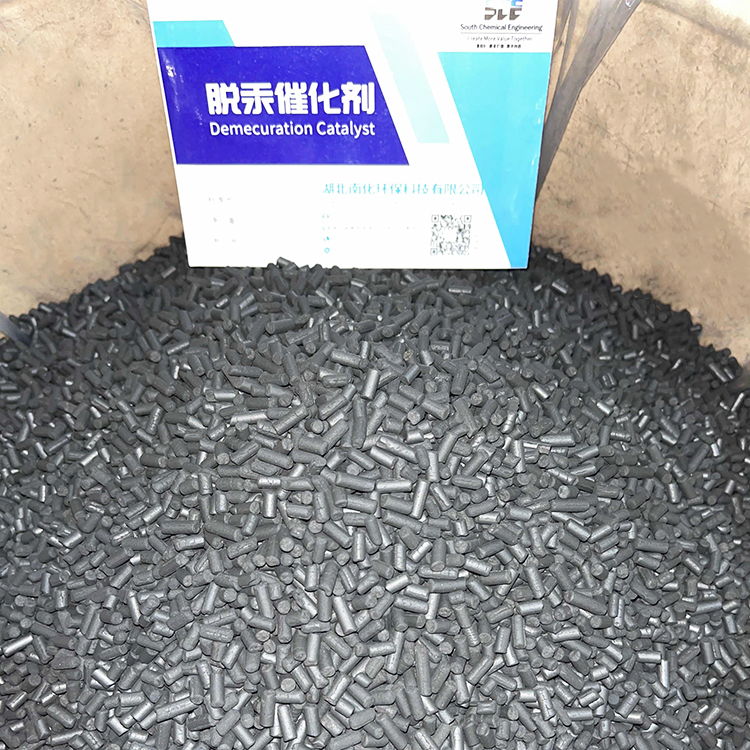

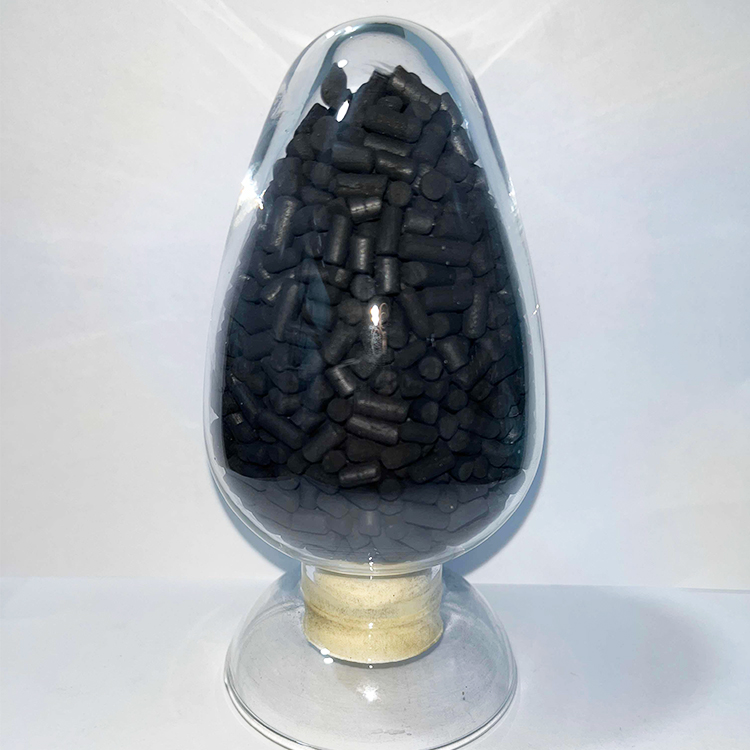

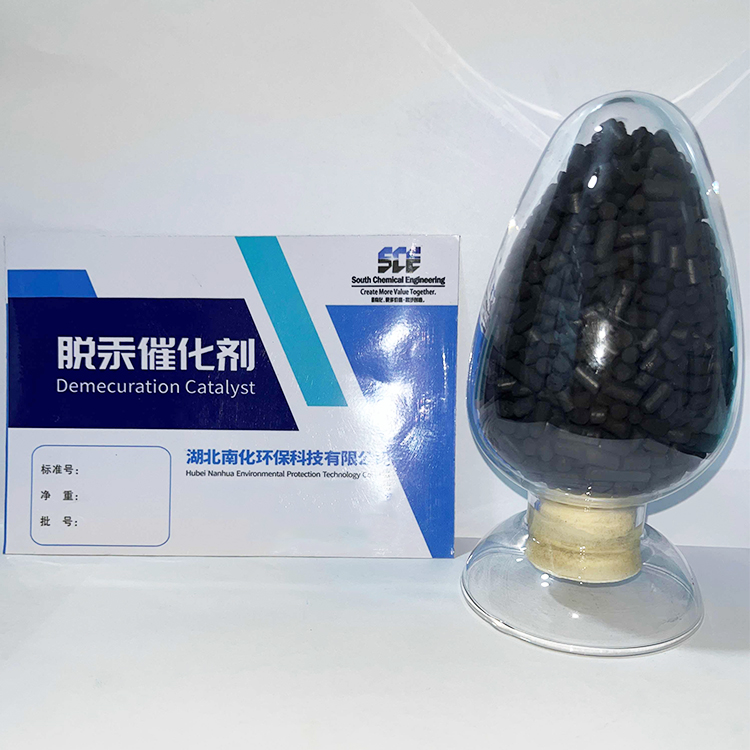

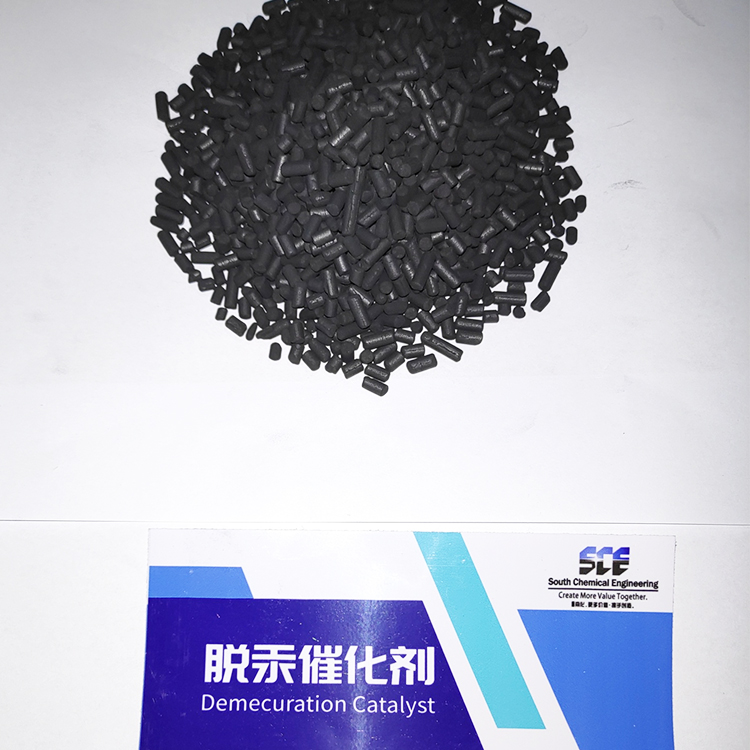

appearance and specification	black cylindrical φ 4.0mm
filling density	450~500kg/m3
strength	≥ 95%
specific surface area	≥ 826m2/g
iodine value	≥ 1035mg/g
hole volume	≥ 0.7cm3/g
carbon tetrachloride value	≥ 50%
moisture content	< 3%
mercury capacity	≥3Wt%
removal index	outlet mercury concentration &le0.001mg/m3
operating temperature	normal temperature ~80 ℃
airspeed	500~3000h-1





Application fields

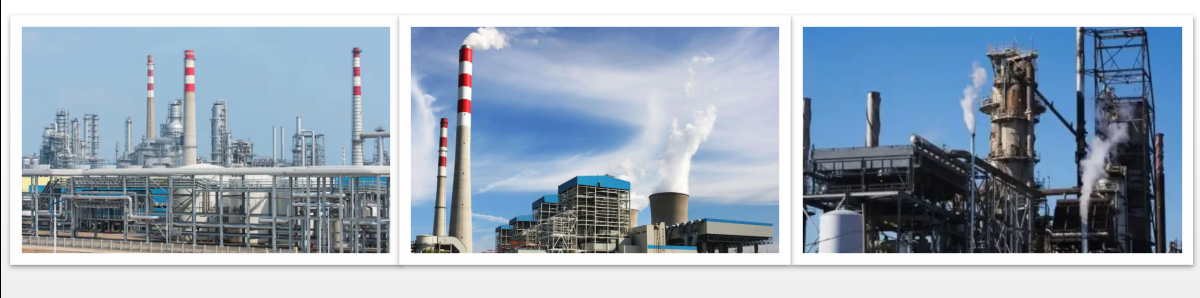

It is applicable to the purification of natural gas, coal-fired flue gas, non-ferrous smelting waste gas, waste incineration flue gas and other waste gases containing mercury [hg]. The presence of CO2, Co, CH4, H2, H2O and other gases in the exhaust gas does not affect the performance of the adsorbent
